Pinhole Leaks in Copper Pipes: Causes and How to Stop Them

It almost always starts the same way. A faint hiss behind drywall. A slow stain spreading across a basement ceiling. Or — the version that ruins a weekend — an 8 p.m. Sunday discovery, an emergency shutoff that won't seat right, and a frantic search for a 24-hour plumber. The pipe didn't fail because it was old. Most homes hit by pinhole leaks have copper plumbing under 20 years, sometimes under 10. The leak is a symptom. The cause is sitting in the water itself.

A 2023 American Water Works Association review put it bluntly: pitting corrosion in residential copper plumbing is now one of the most common premature-failure modes in U.S. homes, and it tracks more closely with municipal water chemistry than with installation quality. If your pipes keep weeping pinholes, the plumber isn't the problem. The water is.

What a Pinhole Leak Actually Is

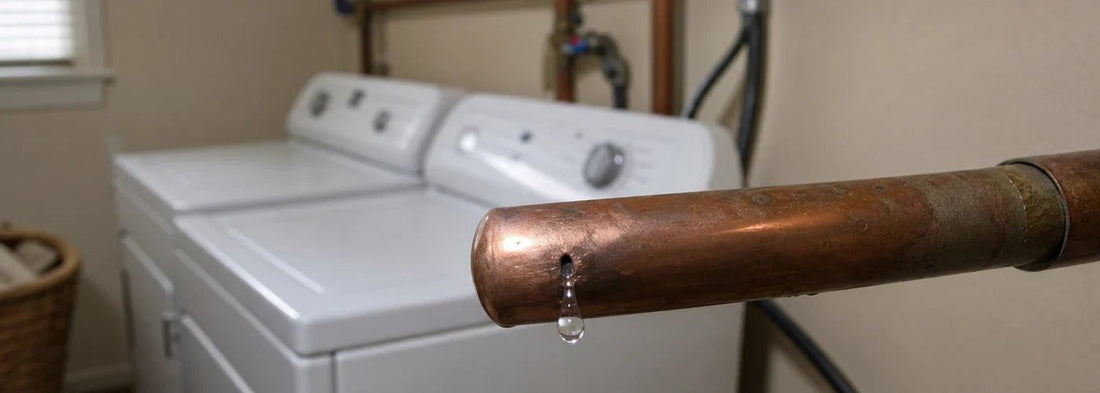

A pinhole leak is the visible end of a process called pitting corrosion. Inside the pipe, a microscopic anode forms on the inner wall — a spot where copper is being chemically dissolved faster than the metal around it. The pit drives downward through the wall over months or years. By the time water makes it to the outside of the pipe, the pit has fully tunneled through. Most pinholes are smaller than a grain of rice. The damage they cause — soaked drywall, ruined floors, mold — is not.

Three things matter when you find one:

• Where it is. Pinholes that show up on horizontal pipe runs in basements or crawl spaces are usually water-chemistry related. Pinholes near a recently soldered joint can be installation flux residue.
• How many you've had. One pinhole is unlucky. Three or more in 24 months is a chemistry problem and the rest of your plumbing is on the same clock.
• What your water looks like. Bluish-green staining around fixtures, faint metallic taste, or copper readings above 0.3 mg/L on a water test all point at active corrosion happening right now.

The Real Causes — Almost Always Water Chemistry

Plumbers can patch the hole. They can't fix what's eating the pipe. Here are the four chemistry drivers behind most residential pinhole leaks, ranked by how often they show up in field studies.

1. Chlorine and Chloramine

U.S. municipal systems disinfect with free chlorine or chloramine. Both are oxidizers, and both react with copper. According to the EPA's 2023 disinfection residual data, the typical home tap carries 0.5 to 4.0 mg/L of chlorine residual at the meter. That residual keeps pathogens in check on the way to your house — and then it sits in your pipes 23 hours a day pulling copper into solution. Chloramine, which an estimated one in five U.S. utilities now use, is roughly twice as aggressive on copper as free chlorine at equivalent concentrations.

2. Low or Unstable pH

Copper resists corrosion in a narrow pH band — roughly 7.0 to 8.5. Below 7.0, dissolution accelerates sharply. The EPA Lead and Copper Rule requires utilities to monitor for this, but the regulatory threshold is still well above the level where premature pinholes start showing up in 10- to 15-year-old plumbing.

3. High Dissolved Oxygen and Velocity

Stagnant water with high dissolved oxygen is a classic pitting setup. So is cold water moving fast through undersized pipe. Hot recirculation loops are the worst combination of both. If your pinholes cluster on the hot side, recirculation velocity is a leading suspect.

4. Sediment and Particulate

Tiny particles — sand, scale flakes from a municipal main repair, sloughed iron oxide — abrade the protective oxide layer that copper grows on its inner wall. Once that layer is broken, the bare metal underneath starts pitting almost immediately. After any street main repair in your neighborhood, copper losses typically spike for two to three weeks.

What Doesn't Actually Help

If you've been Googling this problem, you've already met the usual suggestions. Here's the honest read on each.

• Pitcher filters. Useful for taste at one tap. They do nothing for the 99% of water that runs through your walls.
• Replumbing the leak in PEX. Stops that one pipe from leaking again. Doesn't address why the rest of your copper is still dissolving.
• Repiping the whole house. Effective and very expensive. If you don't fix the water chemistry first, even new copper will pit on the same timeline. PEX is more chemistry-tolerant but not immune.
• Sacrificial anodes or magnetic devices. No reproducible peer-reviewed evidence they slow pitting in residential plumbing.

The thing that consistently slows pinhole formation in field data is the same thing that lets new copper develop a clean protective oxide layer in the first place: take chlorine and sediment out of the incoming water before it ever touches the pipe.

What Actually Works — Treat the Water Before It Hits the Pipe

Whole-house carbon filtration is the standard answer for chlorine and chloramine. The mechanism is simple: granular activated carbon (or catalytic carbon for chloramine) reduces the disinfectant residual to near zero before water enters your home's plumbing. Studies from the Water Quality Association have measured chlorine reduction above 99% across the service life of a properly sized carbon bed.

What to look for in a whole-house filter built for pipe protection:

• Catalytic carbon if your utility uses chloramine. Standard carbon handles free chlorine but is much slower on chloramine.
• Sediment prefiltration rated to at least 5 microns. This catches the particulate that abrades your pipes' inner oxide layer, especially after main repairs.
• Long bed life measured in gallons, not months. A unit rated for 500,000+ gallons treats years of household use without media swaps.
• Low pressure drop so your shower pressure doesn't suffer.

For homes with iron, manganese, or hydrogen sulfide on top of disinfectant — common on private well sources but also seen on rural municipal systems — a dedicated well-water filter handles those before the carbon stage.

The RKIN Approach

The RKIN CBS Dual Carbon Whole House Filter is the system most often spec'd for homes with chlorine-driven pipe issues. It uses two stages of carbon media in a tank-based bed rated for up to 1 million gallons or 10 years (model-dependent), with a sediment prefilter on the front end to catch the particulate that triggers pitting after street work or pressure events.

For homes on chloramine — increasingly common across the Sunbelt and the Mid-Atlantic — the catalytic-carbon configuration handles the harder-to-reduce disinfectant in a single pass. If your house also has hardness scaling on top of pinhole leaks, the RKIN OnliSoft Pro Salt-Free + Carbon Combo bundles scale conditioning into the same housing footprint without adding sodium to your water.

None of this is a guarantee against future leaks — chemistry-driven pitting that's been running for a decade has already done damage that won't undo itself. What whole-house carbon does is take the active driver out of the water so the next 10 years of plumbing aren't on the same trajectory as the last 10.

How to Tell If Your Water Is the Problem

Before you spend money on a system, get a baseline. A standard home water test kit will tell you chlorine residual, pH, hardness, and rough copper. If you've already had a pinhole, ask the plumber to keep the failed section — the pit pattern on the inside wall tells you whether you're dealing with general dissolution (uniform thinning) or pitting (localized deep tunnels). Two different problems, two different fixes.

If your water comes from a private well, the EPA recommends an annual test and a more comprehensive test after any nearby drilling, septic work, or flood event.

Frequently Asked Questions

How long does it take a pinhole leak to form?

Field data from copper plumbing failure studies shows pitting from active chemistry can produce a through-wall pinhole in as little as 5 to 7 years on Type M copper, and 8 to 12 years on heavier Type L. The variation depends almost entirely on water chemistry and water velocity, not pipe brand.

Will a whole-house filter actually stop my next pinhole?

It removes the most common active driver — chlorine and chloramine — and the abrasive sediment that resets the pipe's protective oxide layer. It does not undo damage already in progress. Homes that install carbon filtration after their first pinhole typically see fewer subsequent failures, but pipes with deep existing pits can still fail on the original timeline.

Is chloramine really worse than chlorine for copper?

Yes. AWWA research has documented that chloramine maintains an oxidizing residual longer in stagnant household lines than free chlorine does, which means more contact time for copper dissolution. If your utility switched from chlorine to chloramine in the last decade, that's often when local pinhole rates start rising.

Do I need to repipe my house if I've had pinholes?

Not necessarily. One pinhole is usually a localized event. Three or more in 24 months means the chemistry is actively eating your plumbing, and at that point repipe-plus-filter is often more economical than spot repairs forever. A licensed plumber and a water-chemistry test together give you the data to decide.

Can I just turn down the chlorine somehow?

You can't change what the utility delivers — that residual is required by law to keep the water safe to the meter. The only homeowner-side answer is to reduce it after it enters your home, which is exactly what whole-house carbon filtration does.

What about hot-water-only pinholes?

Hot-side pinholes point at recirculation velocity, dissolved oxygen, and elevated temperature accelerating whatever chemistry is already there. Reducing chlorine residual at the inlet is still the highest-leverage fix. A plumber can also re-balance recirculation pump cycling to lower flow velocity in the loop.

Stop Replacing Pipes. Treat the Water Instead.

Pinhole leaks aren't bad luck and they aren't bad plumbers. They're chemistry, and chemistry is fixable. A properly sized whole-house carbon system addresses the disinfectant residual and sediment that drive copper pitting in the first place — before the next pipe gives out behind your drywall.

See the RKIN CBS Dual Carbon Whole House Filter for the standard chlorine-protection setup, or browse the full whole-house water treatment collection for chloramine, hardness, and well-water-specific configurations.
